High Precision
±0.1mm tolerance supports precise, consistent fit for your assembly.
| DESCRIPTION | SPECIFICATION |
|---|---|
| Maximum Part Size | 1.5 m × 3 m |
| Distance Dimensions | ISO2768-c. Typical size: ±0.2mm (0.008 in.) for length, width, diameter and location. |

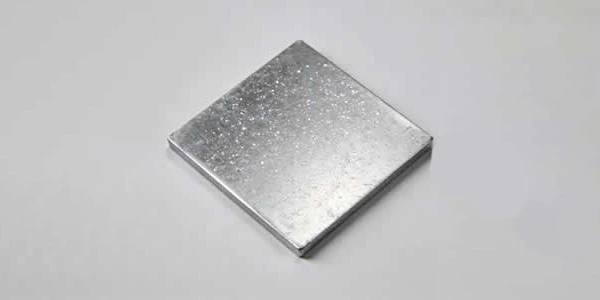

| Maximum Material Thickness | Carbon steel < 25mm (0.98 in.), Stainless steel < 15mm (0.59 in.), Aluminum < 15mm (0.59 in.), Copper < 12.7mm (0.5 in.) |
| Kerf (slit size) | About 0.1–0.3mm |
| Edge Condition | Laser cut edges have matte and vertical lines. |

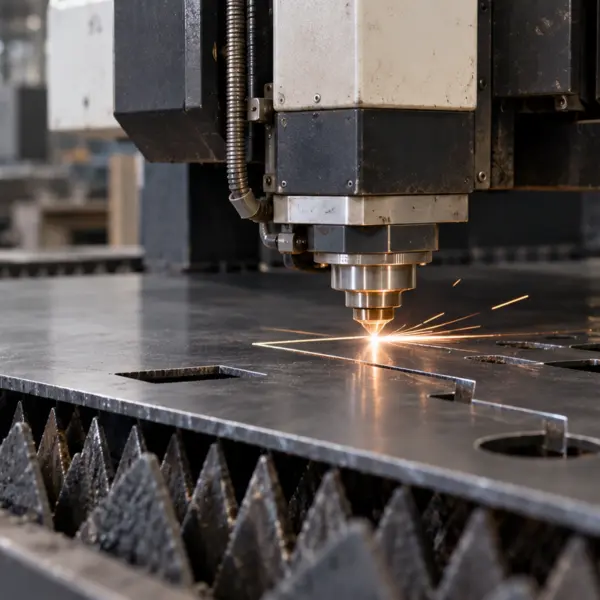

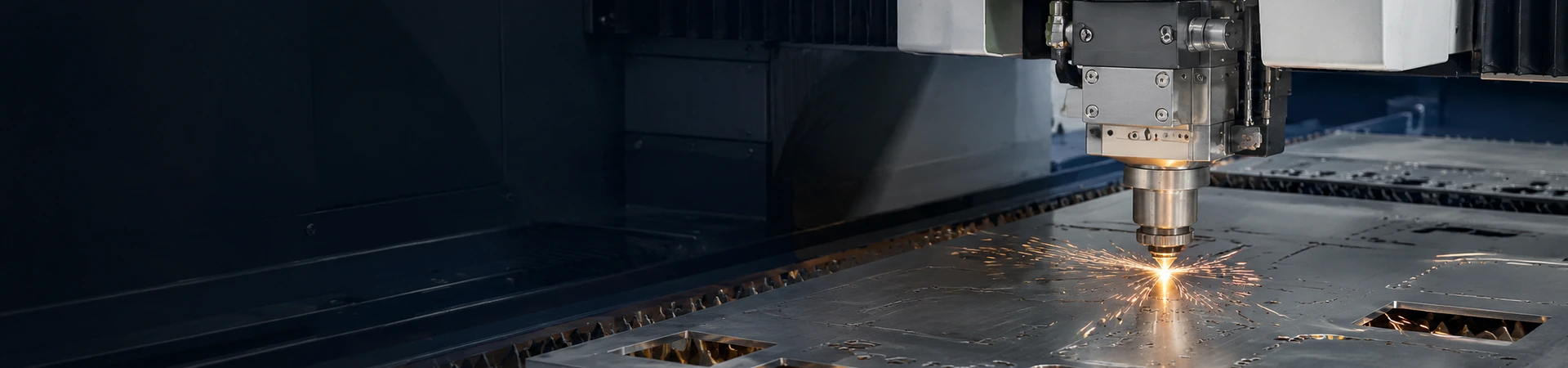

| Laser Sources | CO2 and fiber lasers, up to 6kW. |
| Repeatability | ±0.05 mm |
| Positioning Accuracy | ±0.10 mm |
